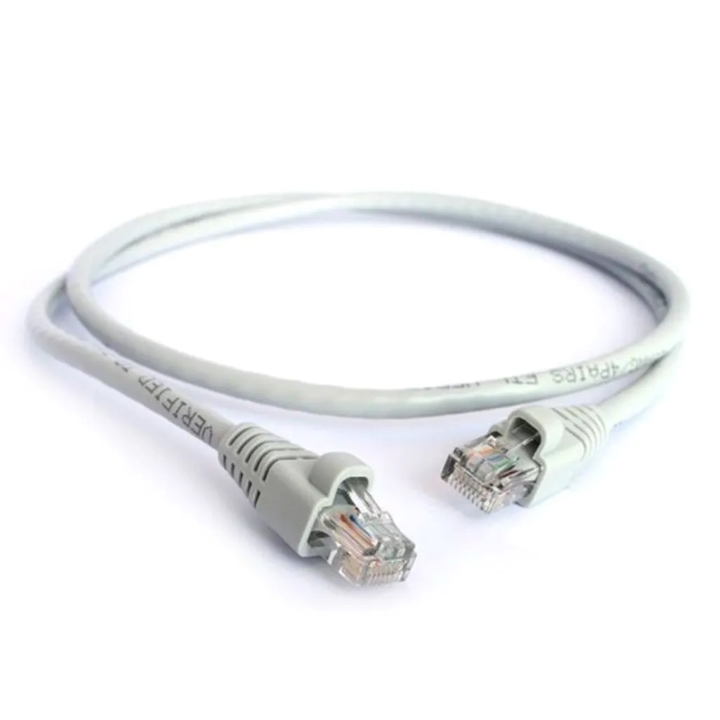

CAT6-0.5 CAT 6 PATCH CABLE 0.5M

• Execution
• Unshielded
• Category 6
• Bandwidth, MHz 250

Cable type

• UTP
• Connector Type 2xRJ45 / 8P8C
• Wiring diagram
• Both ends according to T568B standard
• Protective cap
• Jellied, with latch protection

Conductor type

• Stranded
• Diameter of conductor insulation, mm
• 26 AWG (7×0.160 ± 0.1)
• Insulation material
• Polyethylene (PE)
• Outer sheath material
• Polyvinyl Chloride (PVC)
• The diameter of the outer shell, mm 5.6 ± 0.3
• Colour Gray
• Length, m 0.5

Compliance

• Complies with standards: ISO / IEC 11801, EN 50173 and TIA / EIA-568

Supported Applications

• 10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T,
• ATM-25, ATM-51, ATM-155, 100VG-AnyLan, TR-4, TR-16 Active, TR-16 Passive
